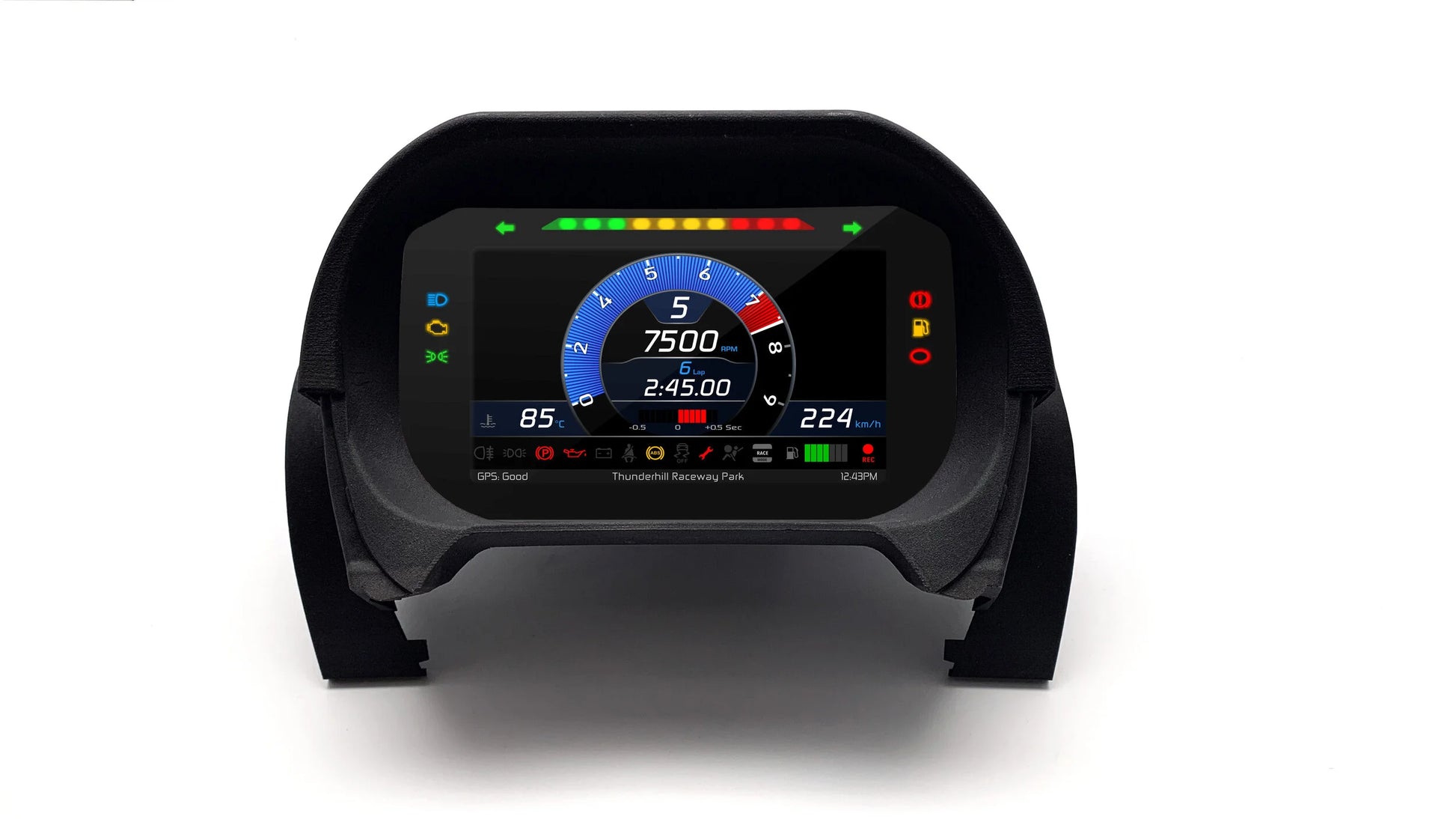

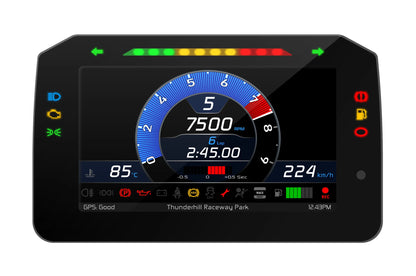

AiM MX2E

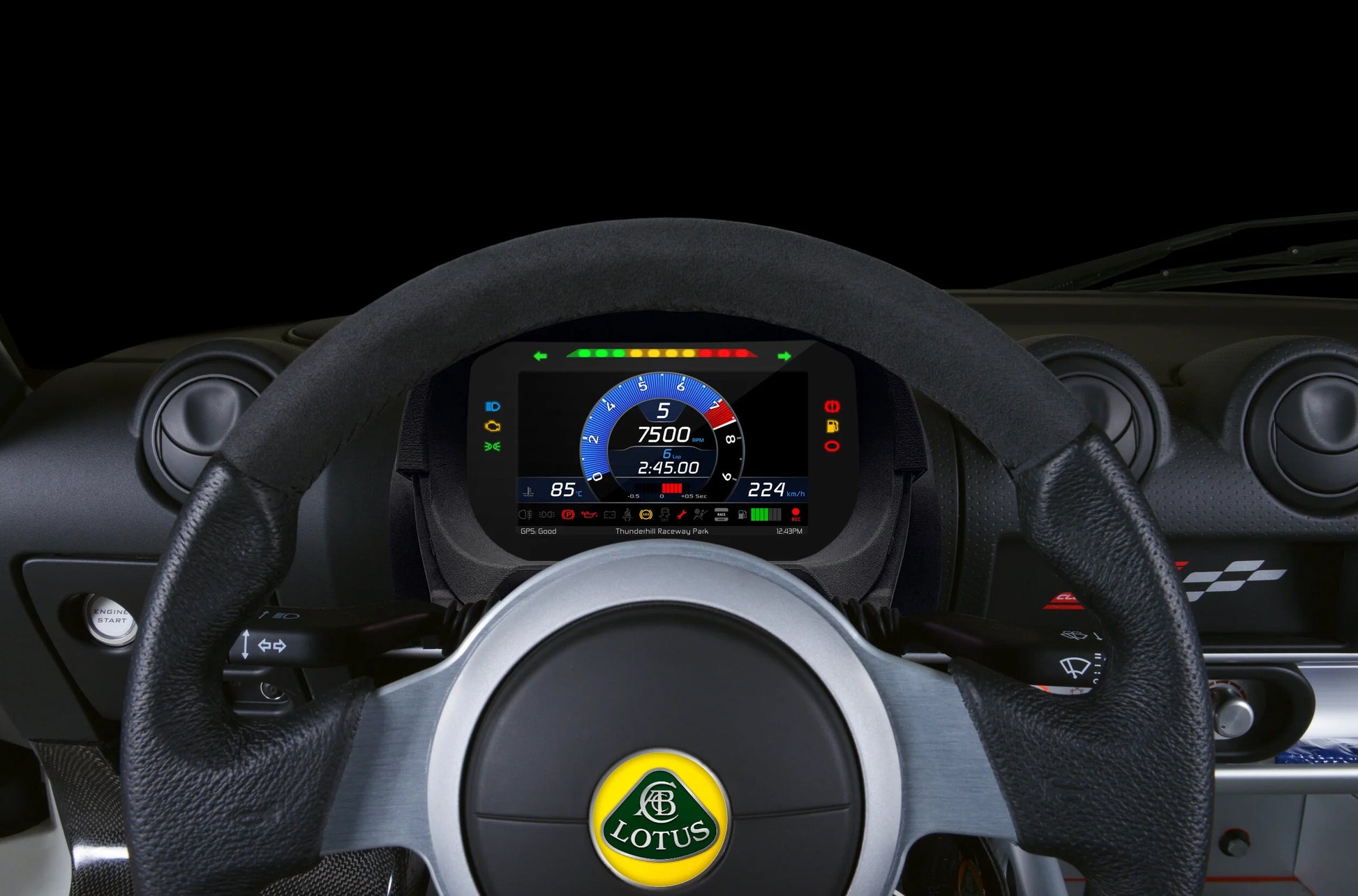

Revolutionary Plug & Play Dash Logger for the Elise & Exige! This kit has been specifically designed as a direct replacement for the factory instrument cluster. This dash displays all street related information that you would need while also providing full race data logging along with the option to add a rear facing camera. No wires need to be cut as this kit is plug and play. We have used AiM products for years and found them to be the most friendly electronics available with just enough sophistication for keen data analysis. This kit brings all of their track advantages to street driven cars that require street information properly displayed onto the dash.

Software and User Manual Linked Below!

We can no longer program your odometer. You will be given access to programming your odometer by Lotus. Instructions for programming your odometer are attached below.

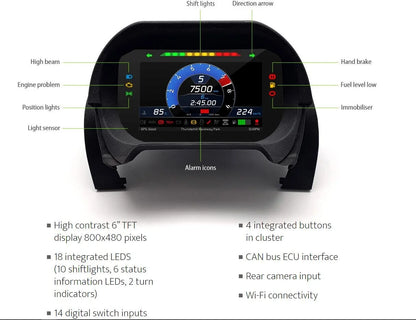

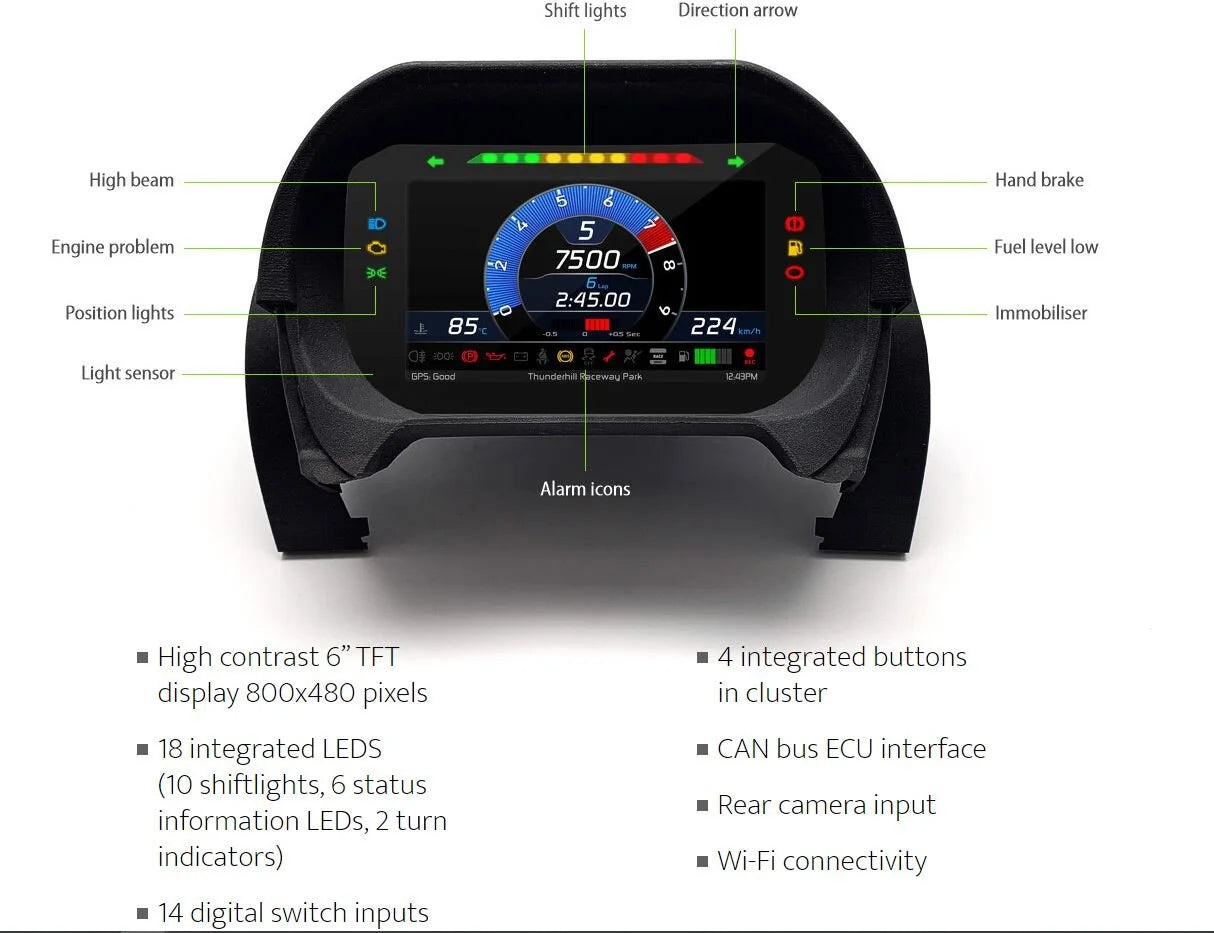

Street or Track

• finally all the info you need for both environments

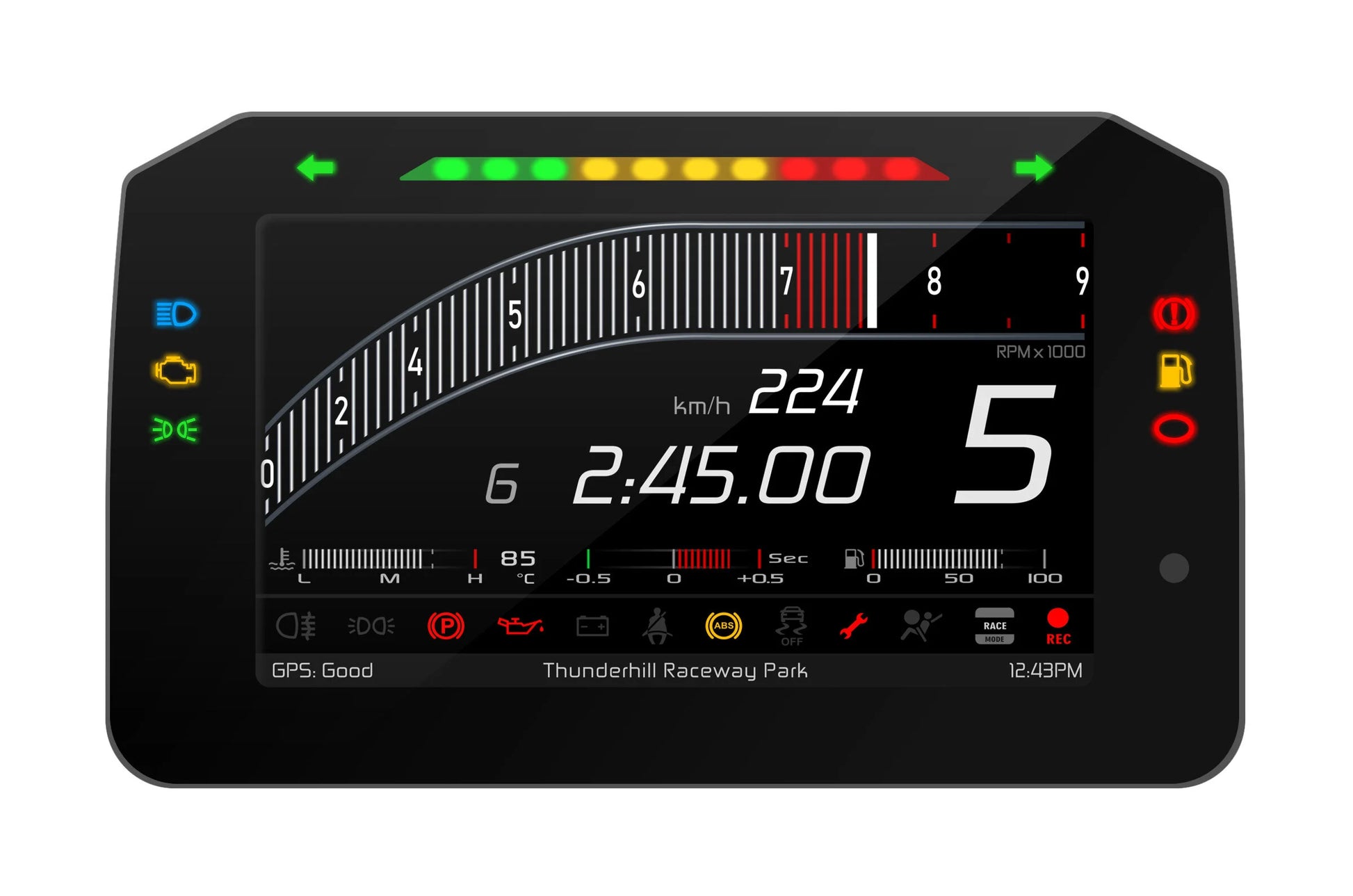

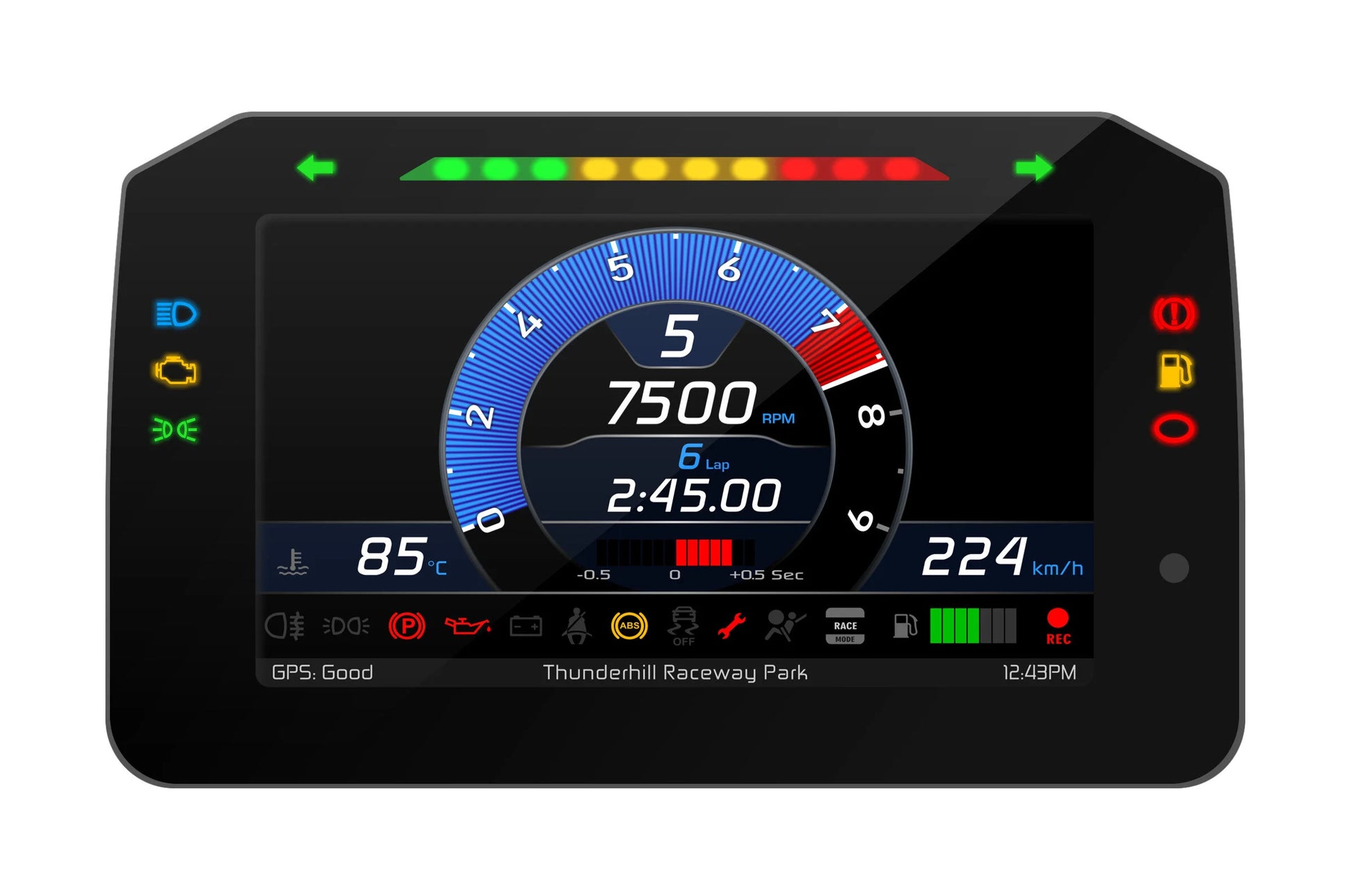

Analog or Digital Themes with 4 Colors & 16 Choices

• pick and choose or toggle back and forth based on your preference

Integrated Lap Time

• integrated GPS

• predictive lap time

• huge track database (4,000+)

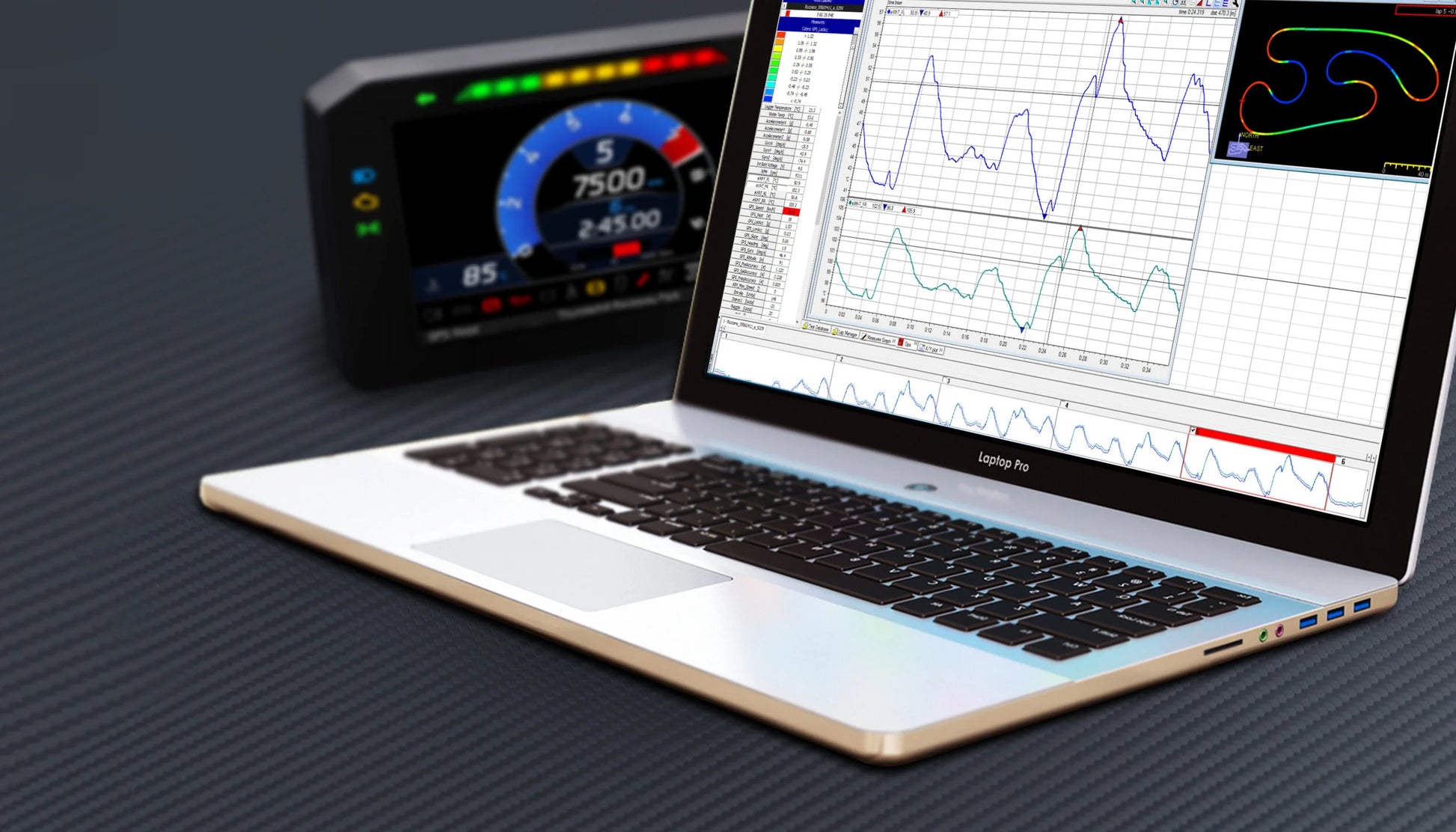

Review data on Screen or WIFI to Your PC

Expandable

• Lambda controller - wide band

• Channel expansion

• Ability to turn off Airbag light

• SmartyCam HD cameras

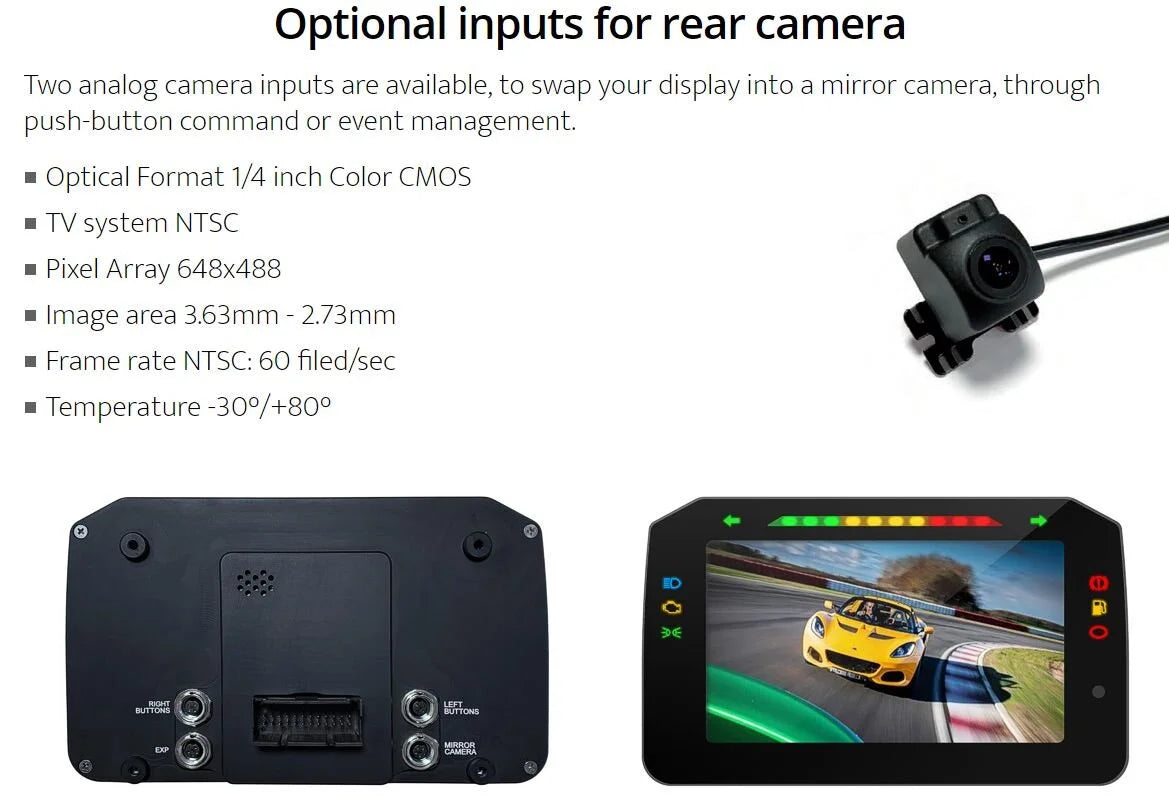

• Rear Camera inputs x 2

  • Two analog camera inputs are available, to swap your display into a mirror camera, through push-button command or event management.

    • Optical Format 1/4 inch Color CMOS

    • TV system NTSC

    • Pixel Array 648x488

    • Image area 3.63mm - 2.73mm

    • Frame rate NTSC: 60 filed/sec

    • Temperature -30°/+80°

Model Compatibility: (only compatible with Toyota engines)

• 2004-2007 (version with airbag only)*

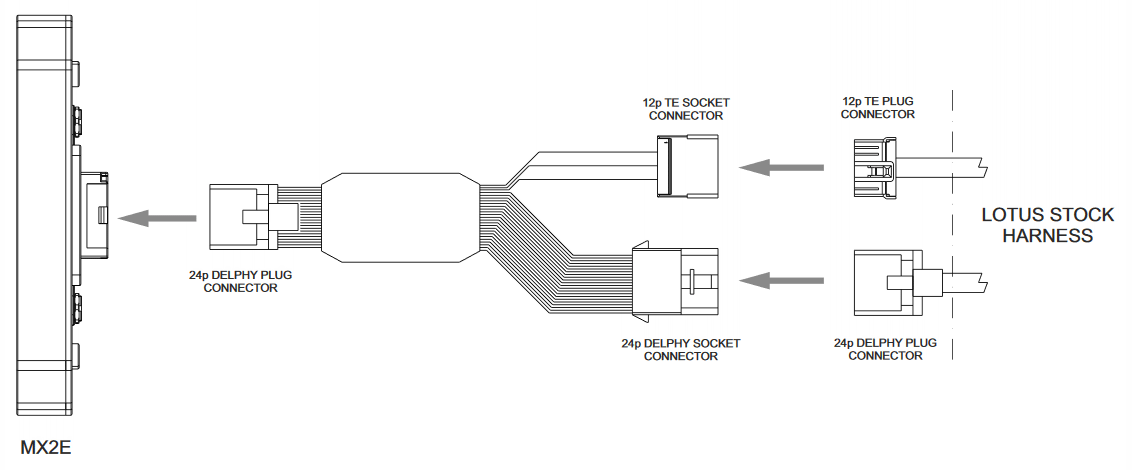

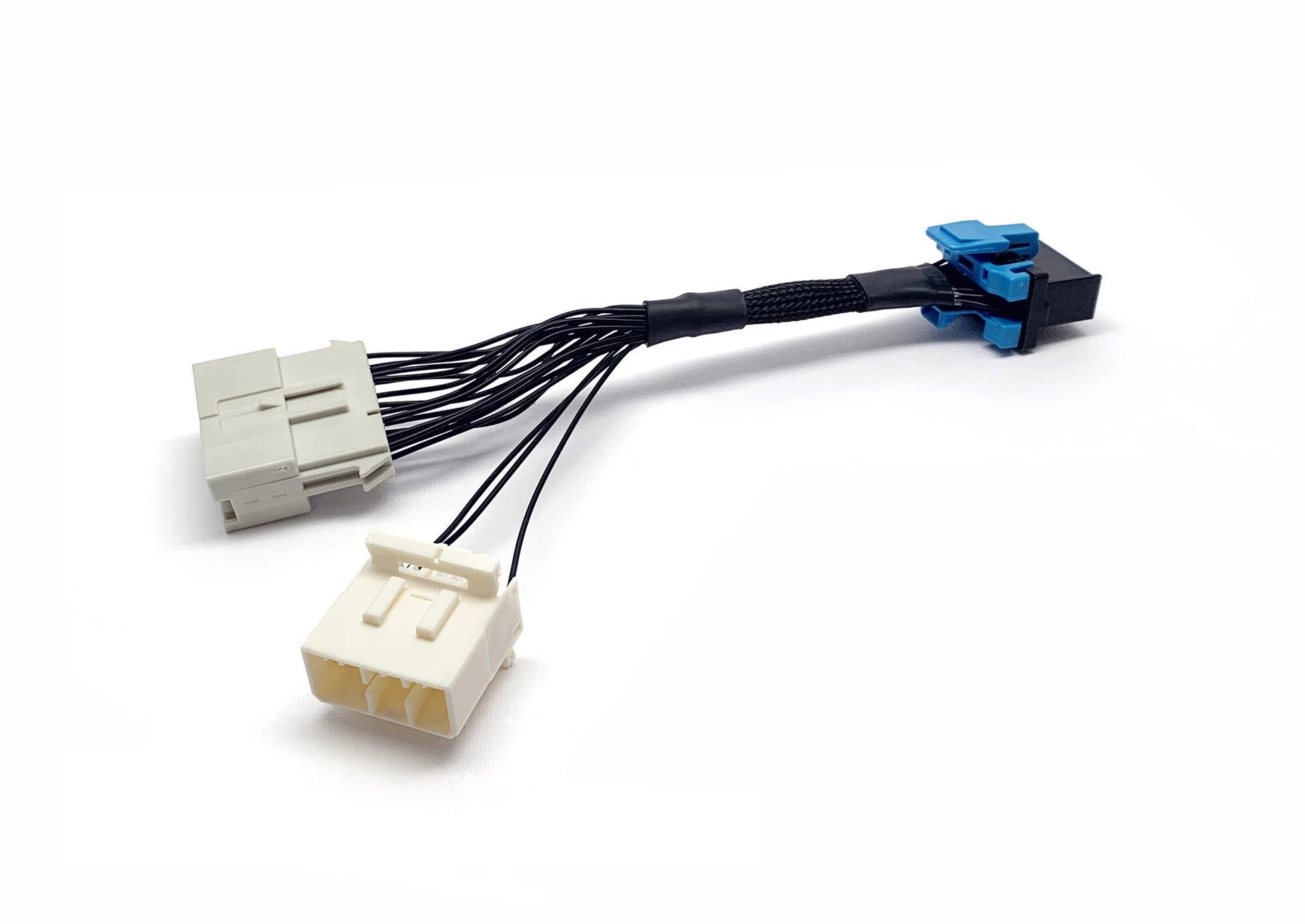

  • *An adapter harness is required

• 2008-2010

• 2011-2020

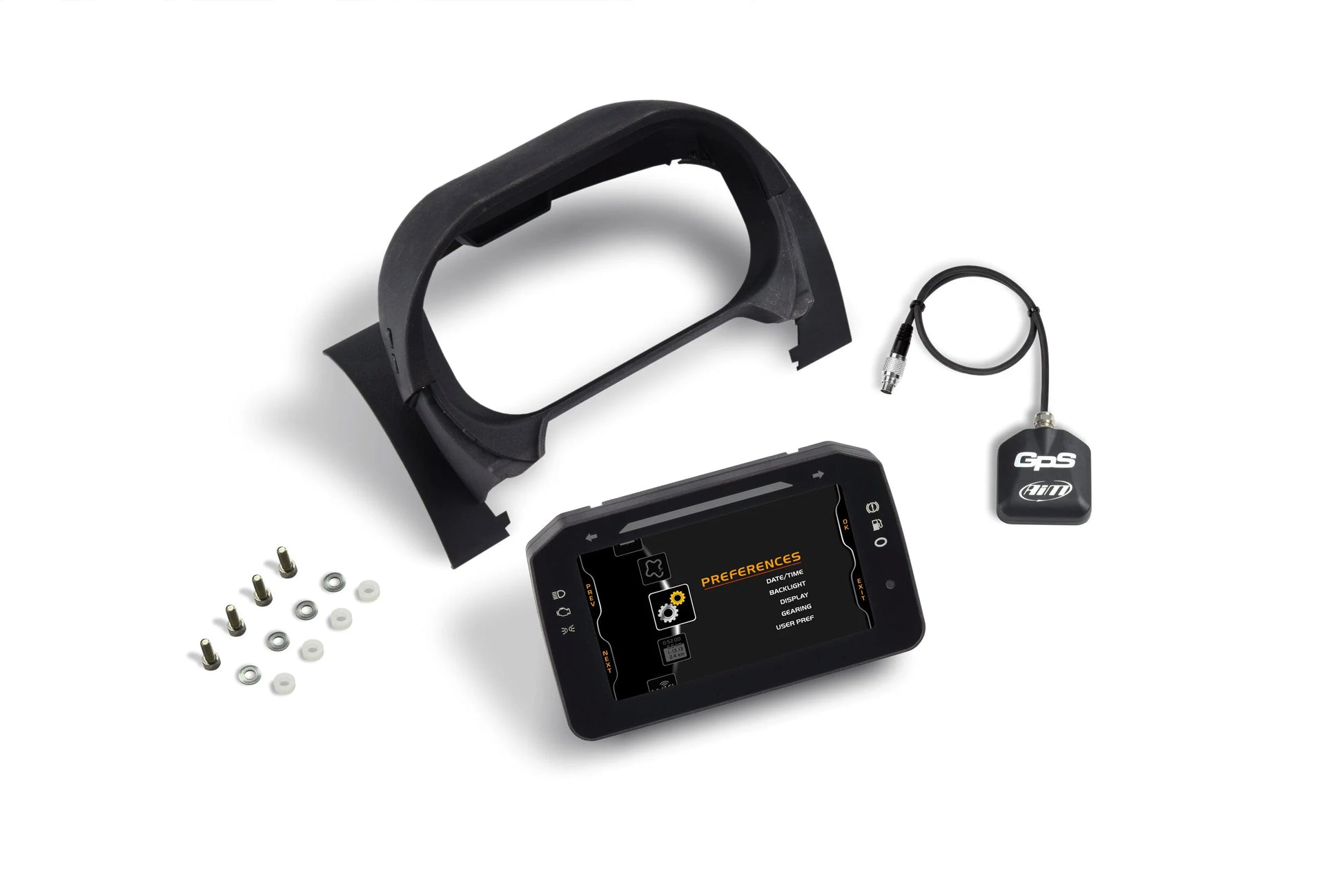

In The Box:

• MX2E dash logger

• washers, screws'

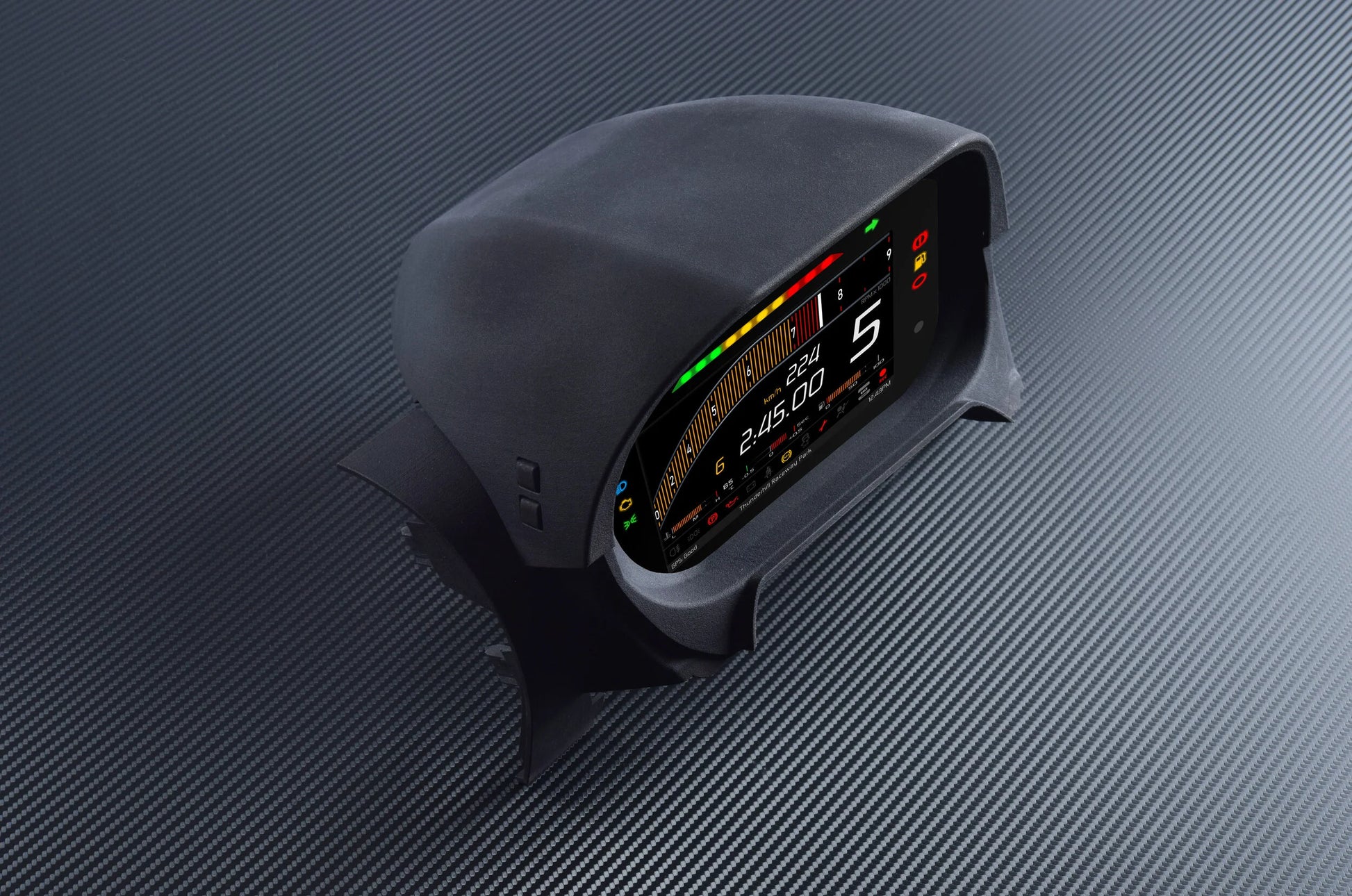

• Plastic instrument binnacle

  • direct replacement for stock

• GPS Module
