raceUPRIGHTs

Run Low & Race Fast!  The raceUPRIGHTS have been our secret weapon during our Lotus Cup 2012 race season.  These engineered uprights are a direct replacement for your stock uprights.  They allow you to run 25mm lower than stock while still staying within the handling envelope designed by Lotus.  They save almost 9lbs of unsprung weight and allow you to run less negative camber than is required by stock uprights.  Another exclusive Sector111 product.

Proper Engineering = Faster Lap Times

• Run lower ride heights (25mm less than stock)

  • we are running 103mm(front) & 110mm(rear) on our Elise

  • lowers center of gravity

  • improves aero

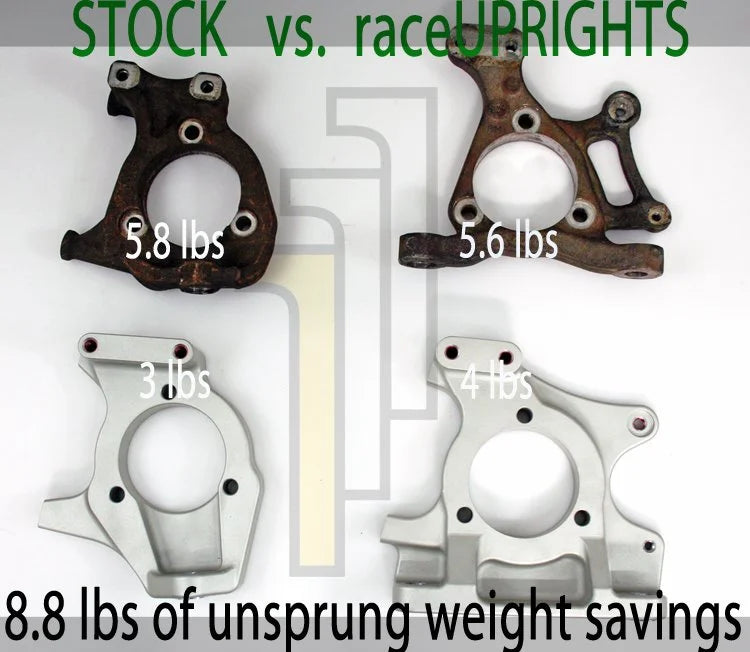

• Reduces unsprung weight = 8.8lbs

  • front = 3lbs vs 5.8lbs (stock)

  • rear = 4lbs vs 5.6lbs (stock)

• Run less negative camber

  • we are running less than 2deg with excellent tire temps

  • geometry has been altered to change the relative angle of the wishbones

    • changes camber gain curve in roll

    • roll centers are lowered

• You can mount stock front caliper to rear upright and keep stock rear caliper

  • great upgrade if you have larger front brakes  like our 308BBK

Race Winning Performance!

• Several 1st Place finishes: Open Class & Overall

• Set fastest lap at the following races:

  • Buttonwillow

  • Chuckwalla

Made with High Quality Materials = Reliability

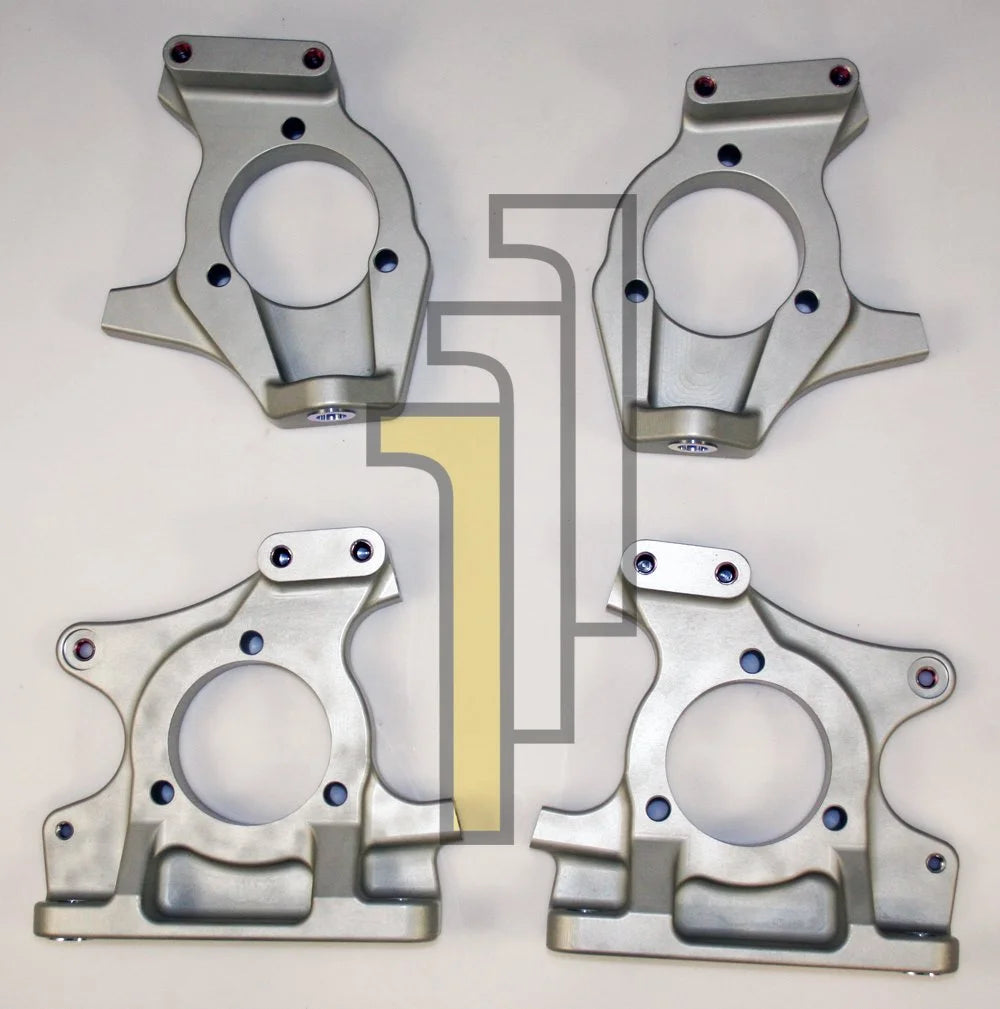

• CNC machined from 6061-T6

  • tumbled + Type II clear anodization

• 1045 steel taper inserts

  • plated for corrosion resistance

• MIL-spec thread locking stainless helicoils

• Made in the USA

Easy Bolt-on Solution

• Run with stock brakes, hubs, suspension components

  • no special parts required

Model Compatibility:

• '04+ Elise, SC

• '06+ Exige, Cup & S220, S240, S260
